Pro Series

1-1/2” Non-Metallic Models

PRO 1-1/2” non-metallic diaphragm pumps are frequently used in transfer, filling, recirculation and supply in Chemical, Industrial and Water/Wastewater treatment markets. Our 1-1/2” models achieve flow rates of up to 100 GPM (378.5 LPM) and also offer a diverse selection of material and porting configurations

Ratio

1:1

Maximum Flow

100 GPM (378.5 LPM)

Displacement per cycle

Standard Diaphragm 0.67 gallons (2.54 liters) Composite PTFE Diaphragm 0.43 gallons (1.63 liters)

Air Inlet: (Female)

1/2-14 NPTF

Fluid Inlet/Outlet

1-1/2” ANSI Flange

Max. operating pressure

120 psi (8.3 bar)

Suspended solids max. dia

1/4” dia. (6 mm)

Weight

Polypropylene 62 lbs (28.1 kg) PVDF (Kynar®) 92 lbs (41.7 kg) Note: Add 23 lbs (10.4 kgs) for cast iron air motor section.

Maximum dry suction lift

14 ft (4.27 m)

Sound Level

70 PSI (4.8 bar) 60 Cycles/Min 77.7 db(A)

Pro Series

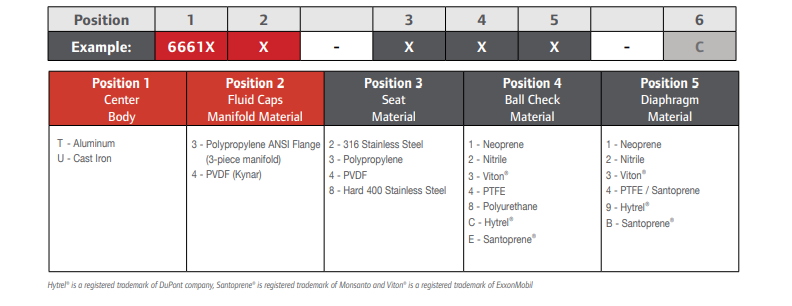

Ordering

-

table-1

Accessories

Air Line Connection Kit | 66073-1

(Piggyback Filter/Regulator with gauge, pipe nipple and 5-foot air hose)

Pro Series

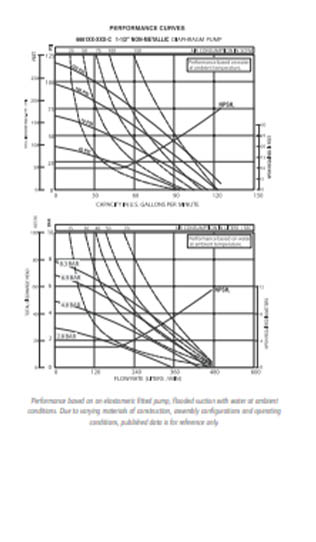

Flow Chart

-

chart-1
data-1

Pro Series

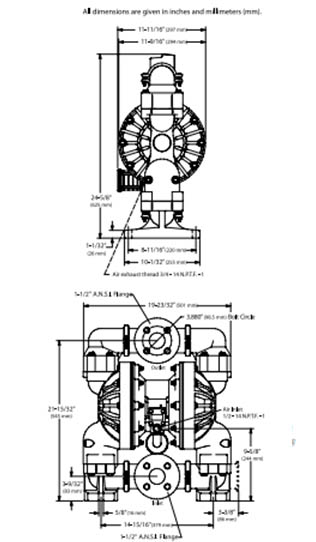

Dimensions

-

chart-1
data-1
