Compact Pumps

3/4” Non-Metallic Models

Part of our Compact Series of pumps, our 3/4” pumps feature big performance in a small package. With flow rates up to 14.8 GPM (56 LPM) and a wide range of material and porting configurations.

Ratio

1:1

Maximum Flow

14.8 g.p.m. (56 l.p.m.)

Displacement per cycle

0.032 Gallons (0.12 Liters)

Air Inlet

(Female) 1/4 - 18 P.T.F. SAE Short

Fluid Inlet/Outlet

1/2 - 14 N.P.T.F. - 1 Rp 1/2 (1/2 -14 BSP, parallel)

Max. operating pressure

100 psi (6.9 bar)

Suspended solids max. dia.

3/32” (2.4 mm)

Weight

lbs (kg) 5.61 (2.54)

Maximum dry suction lift: ft (m)

15.0 (4.5)

Sound Level

70 PSI 60 Cycles/Min 75.0 db(A)

Muffler

Integral, Included

Compact Pumps

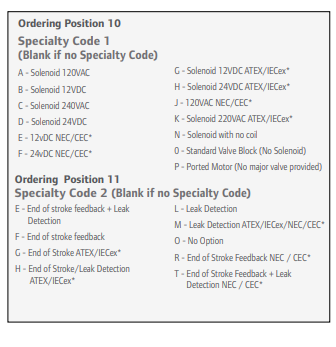

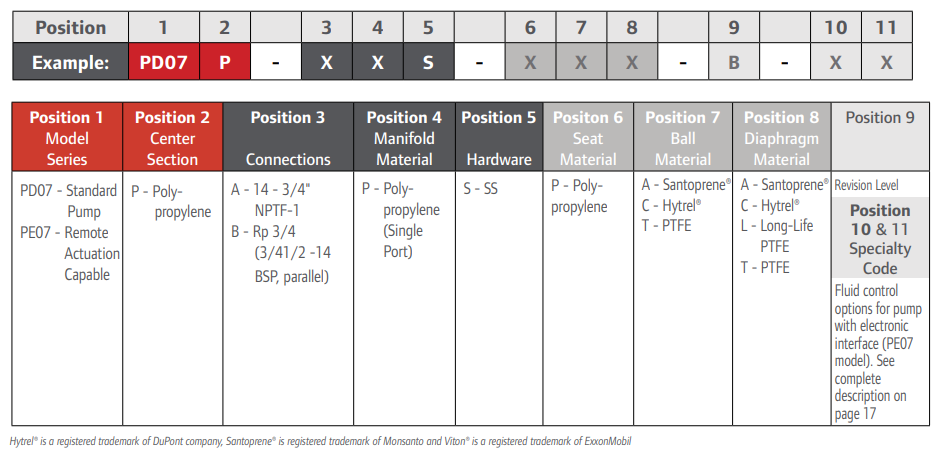

Ordering

-

table-1

Accessories

Air Line Connection Kit | 66073-1

(Piggyback Filter/Regulator with gauge, pipe nipple and 5-foot air hose)

Compact Pumps

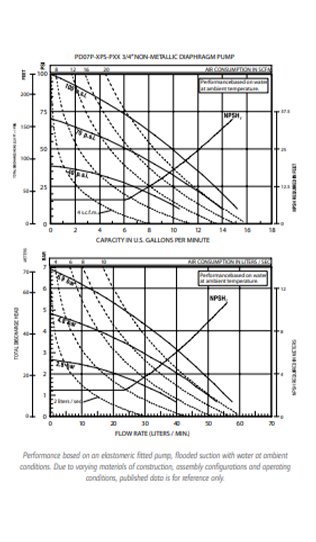

Flow Chart

-

chart-1
data-1

Compact Pumps

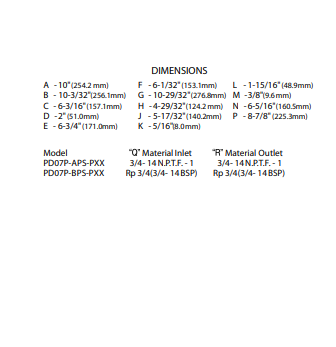

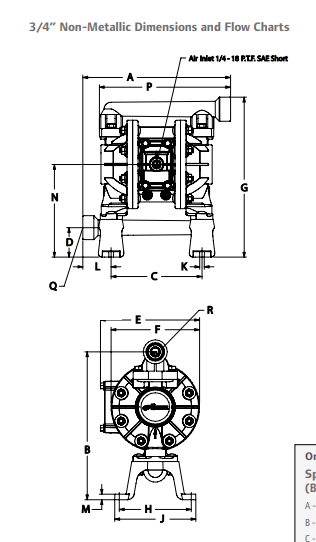

Dimensions

-

chart-1
data-1
