Compact Pumps

3/4” Metallic Models

Part of our Compact Series of pumps our 3/4” metallic pumps feature big performance in a small package. With flow rates up to 14.8 GPM (56 LPM) and a wide range of material and porting configurations.

Ratio

1:1

Maximum Flow

13.6-g.p.m. (51.5-l.p.m.)

Displacement per cycle

0.030-Gallons (0.11-Liters)

Air Inlet

(Female) 1/4 - 18 P.T.F. SAE Short

Fluid Inlet/Outlet

3/4 - 14 N.P.T.F.-2 Rp 3/4(3/4 -14 BSP, parallel)

Max. operating pressure

100-psi (6.9-bar)

Suspended solids max. dia.

3/32” (2.4-mm)

Weight

lbs (kg) PX07R 8.74 (3.96) PX07A 11.0 (4.99)

Maximum dry suction lift

ft (m) 15 (4.5)

Sound Level

70 PSI 60 Cycles/Min 75 db(A)

Compact Pumps

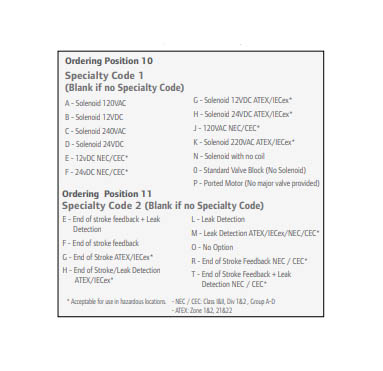

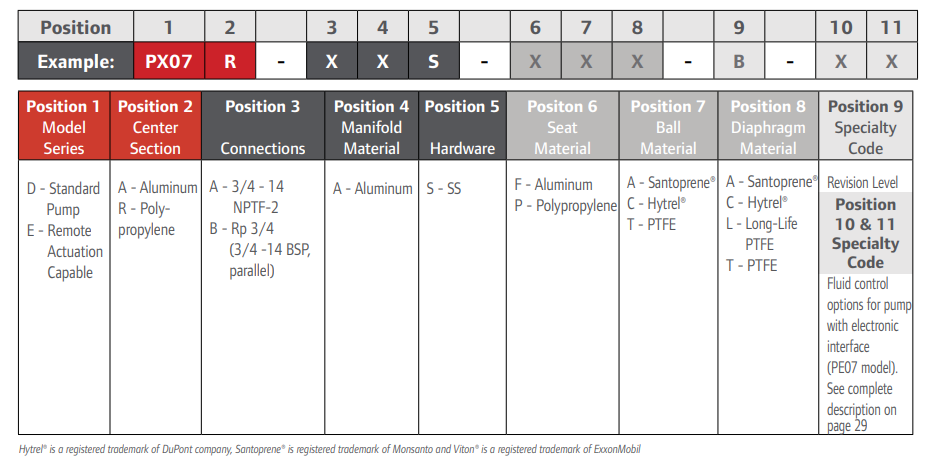

Ordering

table-1

Accessories

Air Line Connection Kit | 66073-1

(Piggyback Filter/Regulator with gauge, pipe nipple and 5-foot air hose)

Compact Pumps

Flow Chart

chart-1
data-1

Compact Pumps

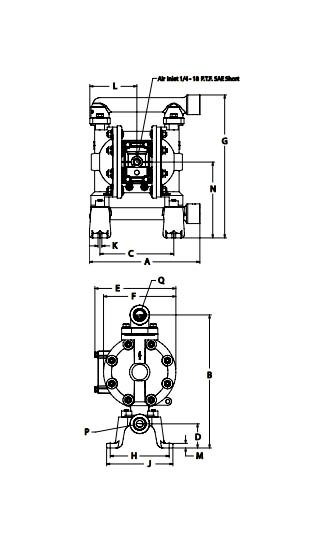

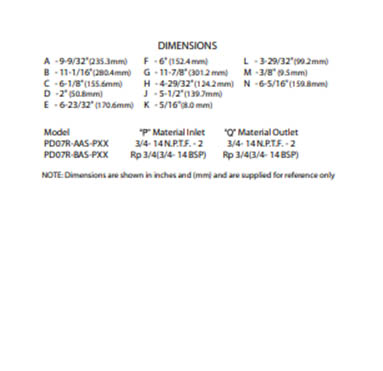

Dimensions

chart-1
data-1
